R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

Enlarge Image

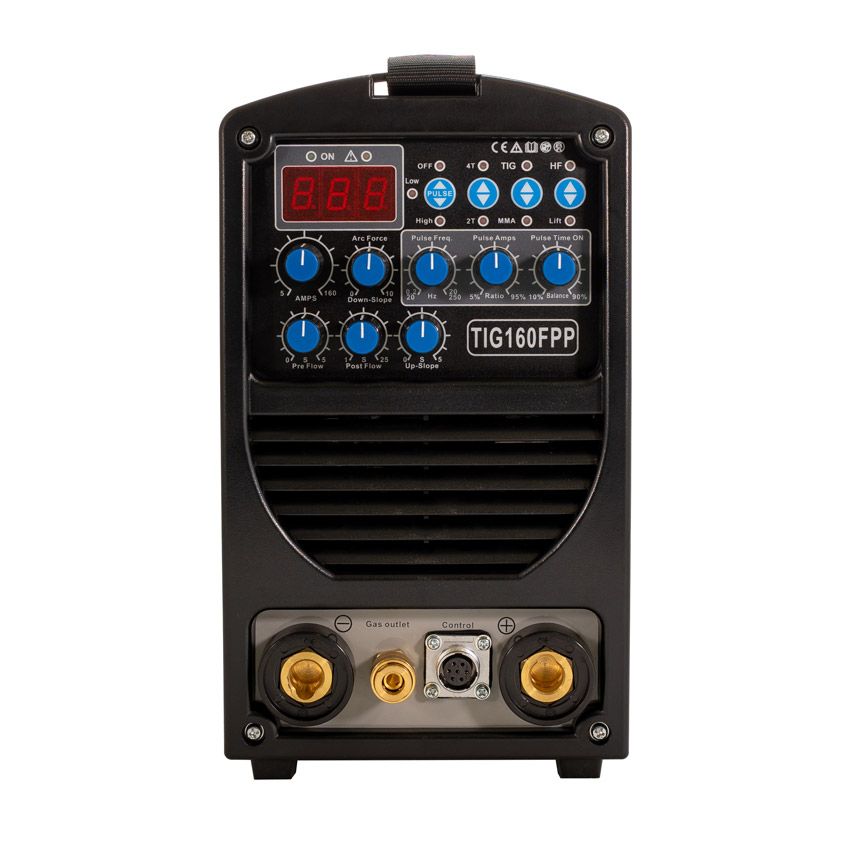

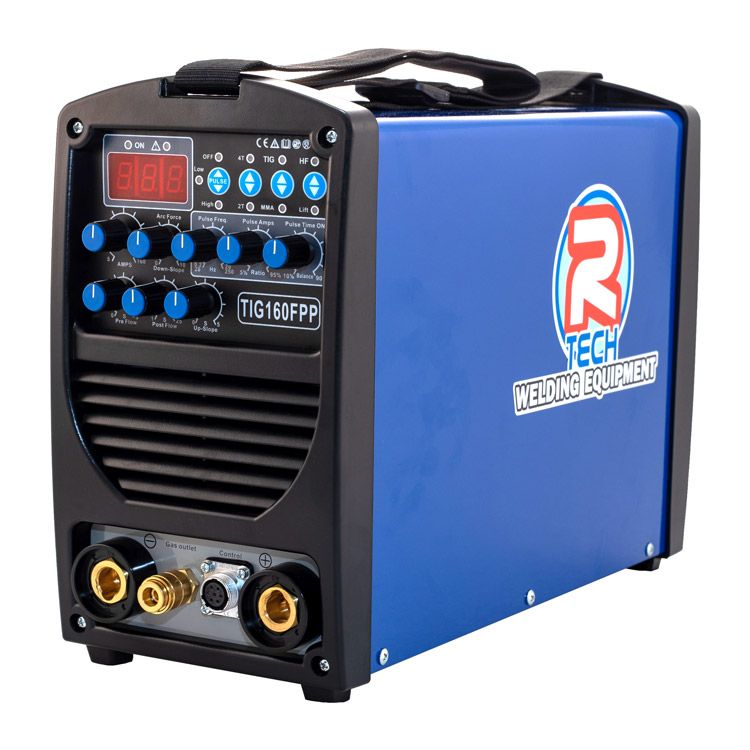

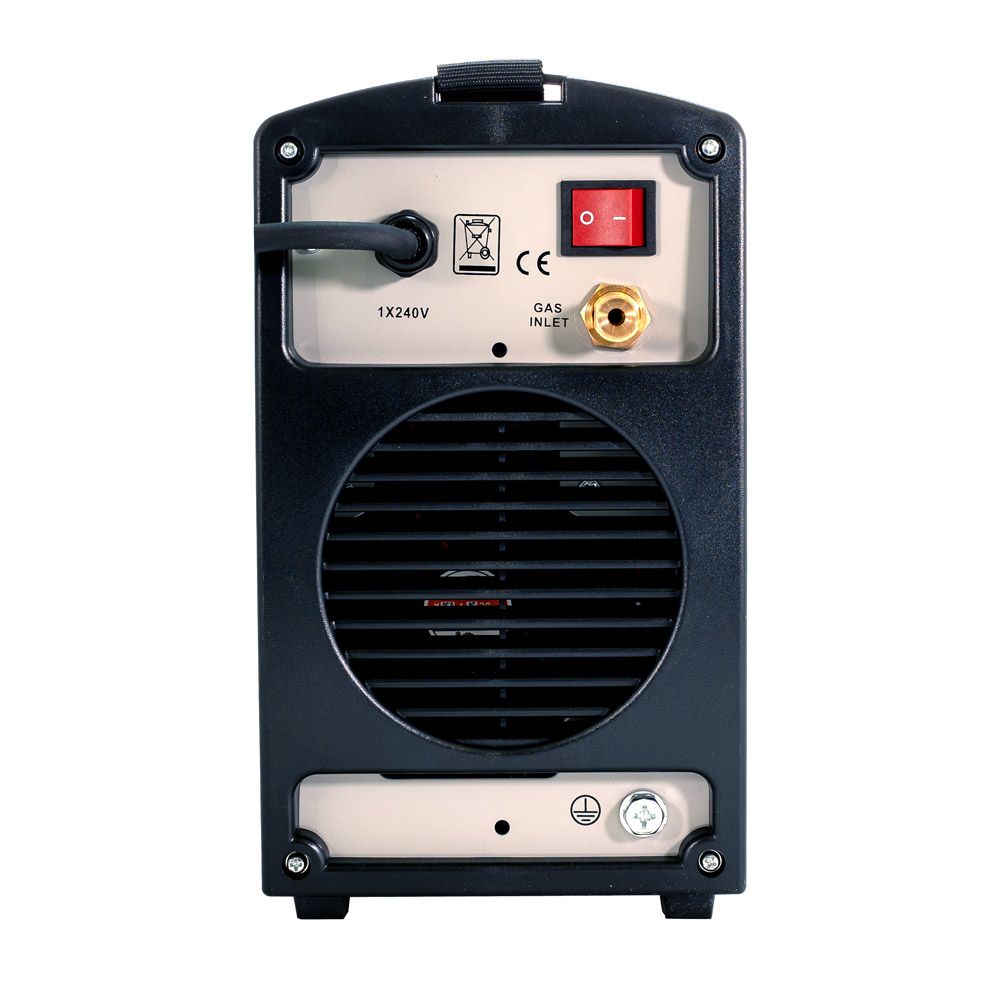

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

CODE: TIG160PDC-SS

Availability: In stock

0% Finance Available - Select pay by finance in checkout - Instant decision
£349.00 +VAT £418.80 Incl. VAT

* Required Fields

Paypal Visa American Express Mastercard

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 10mm

5mm Max Weld

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 10mm
Welds ALL steels in DC mode, will also weld brass, copper & titanium

Weld Steel

Welds ALL steels in DC mode, will also weld brass, copper & titanium
Description

Details

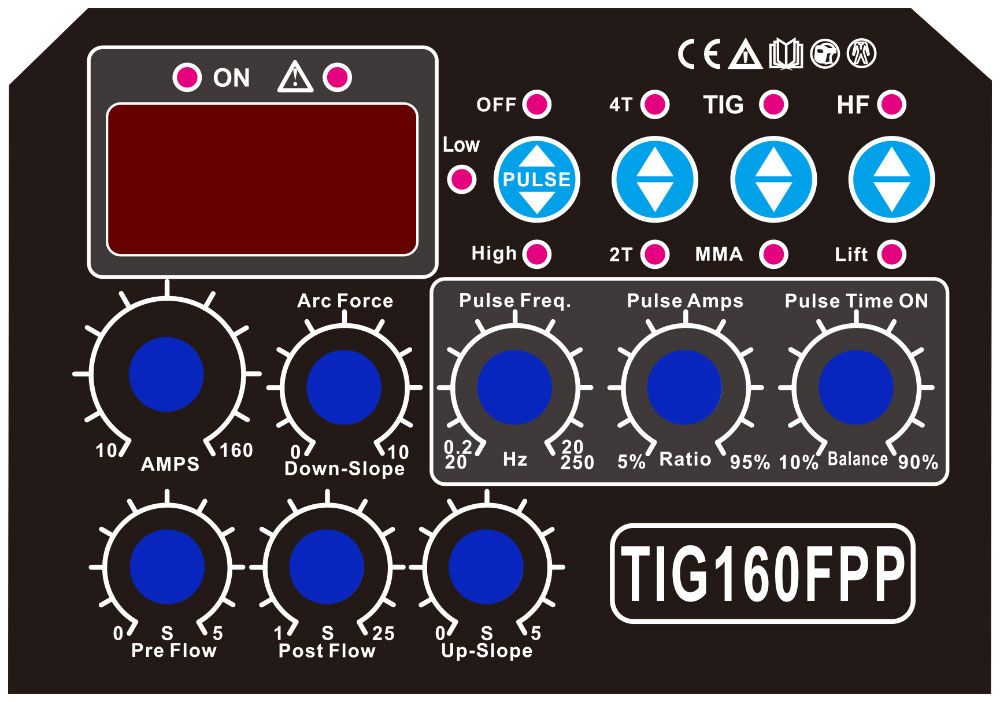

The R-Tech TIG160PDC is a feature rich 160Amp TIG Welder with 240V input, high frequency starting, pulse welding, slope up/down, LED display, high 35% duty cycle and optional foot pedal.
Tech Specs

Details

 Amperage range DC 10-160A, MMA 20-125A
 Duty cycle  TIG 160A 35% - MMA 125A 35%
 Input voltage/amps  240v 13A  - No load voltage 70v
 LED Display  Shows preset & actual amperage
 Pulse Frequency  0.5 - 25 Hz
Slope up  0 - 5 seconds
Slope down  0 - 5 seconds
 Post flow gas  0 - 10 seconds
 HF Start  Yes
 2T/4T Trigger  Yes
 Gross weight  13KG
 Dimensions  425 x 195 x 310
 Foot pedal option  Yes
 Insulation class  IP21S
Cooling fan  Yes - Cooling fan with thermostatic protection





Videos

Details

Warranty

Details

3 Year Warranty



The R-Tech TIG160PDC *Shop Soiled* carries the following warranty:-

  • TIG160PDC *Shop Soiled* - 3 Year Warranty
  • Regulator - 1 Year Warranty
  • R-Tech TIG Torches - 3 Month Warranty
  • Earth and Electrode Leads - 3 Month Warranty
  • FP7 Foot Pedal - 1 Year Warranty
  • Optional Water Cooler - 3 Year Warranty

R-Tech machines are designed to be robust, easy to use and highly reliable but in the unlikely event that your welder or plasma cutter requires attention, R-Tech promise to:-

  • Arrange collection via next working day UK courier [48hr offshore]
  • Quickly repair the machine at our Technical and R&D centre in Gloucester
  • Deliver back via next working day UK courier  [48hr offshore]
  • All costs covered by R-Tech - Yes, Collection, repair and delivery!

No questions, no hassle, just honest and reliable service - A true no quibble warranty

Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.

Other benefits of owning an R-Tech machine include:-

  • Free friendly and knowledgeable technical advice via phone and email
  • Free machine setup help always available - We want you to get the best from your machine
  • Ten year Duty-of-Care on all our machines, giving you piece of mind that spare parts will be available if needed
  • Video's to show how to use and setup your R-Tech machine.
  • 2 year extended warranties available at a minimal cost.

Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.

Reviews
Product reviews for R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled (7)
Powered by
5 Stars
7
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Average rating
5 / 5
Calculated from 7 reviews
5 out of 7 reviews :
R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

Had it a week and already made a X-pipe for 5.0litre Mustang !

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

Top quality in all aspects.

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

Compact size. Good features and first class price point

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

Self employed ironworker using TIG MIG MMA. Very robust construction and excellent reliability

R-Tech TIG Welder DC 160 Amp 240v - Shop Soiled

I use this welder for my hobby, which is car and motorcycle maintenance. It performs so much better than my previous welder. I am absolutely delighted with it, everything seems to be top quality. I highly recommend this machine.
