Mobile Welding Fume Extraction

Set Descending Direction

9 Item(s)

  1. PROTECTOVAC FUME EXTRACTOR 110V
    Code: WA-EXT1VAC110
    PROTECTOVAC FUME EXTRACTOR 110V

    ProtectoVac is a portable, twin-motor, high-vacuum fume-extraction system specifically designed to extract and filter metal particulate fumes created in welding processes. A high efficiency 3 stage filtration system, including a spark arrestor and is quite operation <70dBA.

    The ProtectoVac is supplied with a 2.5m hose, magnetic foot welding nozzle and spare set of motor brushes, The ProtectoVac features an auto on/off function which allows the unit to be engaged automatically with the welding arc. The ProtectoVac can also be used for on-MIG-torch extraction, with the appropriate fitting kit available separately. The ProtectoVac is highly portable weighing only 15kg and mounted on swivel castors. Operates from a 110v input supply.

    The ProtectoVac should NOT be used for filtering fumes containing oil, solvent, explosive dusts/gases or hybrid mixtures of wastes, etc.

    £845.00 +VAT £1,014.00 Incl. VAT
    In stock
  2. PROTECTOVAC FUME EXTRACTOR 230V
    Code: WA-EXT1VAC230
    PROTECTOVAC FUME EXTRACTOR 230V

    ProtectoVac is a portable, twin-motor, high-vacuum fume-extraction system specifically designed to extract and filter metal particulate fumes created in welding processes. A high efficiency 3 stage filtration system, including a spark arrestor and is quite operation <70dBA.

    The ProtectoVac is supplied with a 2.5m hose, magnetic foot welding nozzle and spare set of motor brushes, The ProtectoVac features an auto on/off function which allows the unit to be engaged automatically with the welding arc. The ProtectoVac can also be used for on-MIG-torch extraction, with the appropriate fitting kit available separately. The ProtectoVac is highly portable weighing only 15kg and mounted on swivel castors. Operates from a 230v input supply.

    The ProtectoVac should NOT be used for filtering fumes containing oil, solvent, explosive dusts/gases or hybrid mixtures of wastes, etc.

    £845.00 +VAT £1,014.00 Incl. VAT
    In stock
  3. PROTECTOXTRACT FUME UNIT 110V PKG
    Code: WA-EXT1MOB110
    PROTECTOXTRACT FUME UNIT 110V PKG

    ProtectoXtract is a BGIA approved mobile high-vacuum extraction system for filtration of particulate fumes, dusts and some gases. The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation 68dBA. The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes >30 NiCr. The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability. Operates from a 110v mains input supply.

    IMPORTANT - When used with processes that produce spatter and/or grinding sparks, the optional ProtectoSpark Filter EXT978013 must be used.

    The ProtectoXtract should NOT be used for filtering fumes containing oil, solvents, explosive dusts/gases or hybrid mixtures of wastes, etc.



    £1,195.00 +VAT £1,434.00 Incl. VAT
    In stock

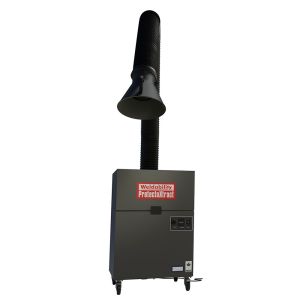

  4. PROTECTOXTRACT FUME PKG 230V PKG
    Code: WA-EXT1MOB230
    PROTECTOXTRACT FUME PKG 230V PKG

    ProtectoXtract is a BGIA approved mobile high-vacuum extraction system for filtration of particulate fumes, dusts and some gases. The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation <68dBA. The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes >30 NiCr. The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability. Operates from a 230v mains input supply.

    IMPORTANT - When used with processes that produce spatter and/or grinding sparks, the optional ProtectoSpark Filter EXT978013 must be used.

    The ProtectoXtract should NOT be used for filtering fumes containing oil, solvents, explosive dusts/gases or hybrid mixtures of wastes, etc.

    £1,195.00 +VAT £1,434.00 Incl. VAT
    In stock
  5. PROTECTOXTRACTOP Filter Unit for Grinding
    Code: WA-EXT978016
    PROTECTOXTRACTOP Filter Unit for Grinding

    The ProtectoXtracTop is a retro-fittable filter unit that enables the ProtectoXtract to be used for grinding applications. Extraction of particles takes place through a perforated plate within the supporting surface. ProtectoXtract unit sold separately

    ATTENTION - This unit must only be used in combination with the ProtectoSpark EXT978013

    £1,335.85 +VAT £1,603.02 Incl. VAT
    In stock
  6. PROTECTORECLENZ 110V
    Code: WA-EXT1REC2110
    PROTECTORECLENZ 110V

    ProtectoReclenz is a BGIA approved mobile fume filter type UPF-BIA class W3 incorporating a separator, durable large surface area filter cartridge with PTFE laminate complete with audible and visible filter monitor, rotational direction indicator and hour meter. The unit is capable of handling up to 3000 m3/hr and is complete with a 2, 3 or 4m 150mm dia hose type arm with internal support structure. The unit has a 1.1 kW fanset and is supplied with a 5m mains input cable. The filter cartridge can be cleaned quickly and easily with compressed air. This mobile unit weighs only 130KG and is supplied on swivel castors for manoeuvrability

    The ProtectoReclenz should NOT be used for filtering fumes containing oil, solvent, explosive dusts/gases or hybrid mixtures of wastes, etc.

    £4,472.35 +VAT £5,366.82 Incl. VAT
    In stock
  7. PROTECTORECLENZ 230V
    Code: WA-EXT1REC2230
    PROTECTORECLENZ 230V

    ProtectoReclenz is a BGIA approved mobile fume filter type UPF-BIA class W3 incorporating a separator, durable large surface area filter cartridge with PTFE laminate complete with audible and visible filter monitor, rotational direction indicator and hour meter. The unit is capable of handling up to 3000 m3/hr and is complete with a 2, 3 or 4m 150mm dia hose type arm with internal support structure. The unit has a 1.1 kW fanset and is supplied with a 5m mains input cable. The filter cartridge can be cleaned quickly and easily with compressed air. This mobile unit weighs only 130KG and is supplied on swivel castors for manoeuvrability

    The ProtectoReclenz should NOT be used for filtering fumes containing oil, solvent, explosive dusts/gases or hybrid mixtures of wastes, etc.

    £4,472.35 +VAT £5,366.82 Incl. VAT
    In stock
  8. PROTECTOTWIN 230V PKG
    Code: WA-EXT1TWI230
    PROTECTOTWIN 230V PKG

    The ProtectoTwin is a twin port high-pressure turbine with infinitely adjustable speed control specifically designed to extract and filter metal particulate fumes created in welding processes. The ProtectoTwin is supplied with a 2.5m hose and magnetic foot welding nozzle. ProtectoTwin is fitted with a BIA M filter cartridge that filters hazardous substances to an extent of more than 99 per cent.

    Dual Port facilitating local extraction via hood and torch extraction from a single unit. The filter can be cleaned manually or automatically with compressed air, providing a long filter life. The particles are collected in a dust collection drawer and can be easily removed from the unit. On castors 25 kg. Operates from a 230v mains input supply.

    £1,887.60 +VAT £2,265.12 Incl. VAT
    In stock
  9. PROTECTOAUTOCLENZ 415V
    Code: WA-EXT3AUT2415
    PROTECTOAUTOCLENZ 415V

    ProtectoAutoclenz is a self cleaning mobile fume filter type PF incorporating a separator, a durable large surface area filter cartridge, and complete with a filter monitor, post-cleaning function and hour meter. The unit is capable of handling up to 3000 m3/hr and is complete with a 2, 3 or 4m 150mm dia hose type arm with internal support structure. The unit has a 1.5 kW fanset and is supplied with a 5m mains input cable. ProtectoAutoclenz weighs 160kg and is supplied on swivel casters for manoeuvrability.

    £6,992.70 +VAT £8,391.24 Incl. VAT
    In stock

Set Descending Direction

9 Item(s)
