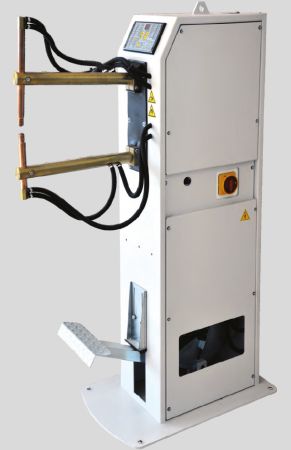

Spot Welder 16KVA Tecna Digital 4640 Pedestal

Spot Welder 16KVA Tecna Digital 4640 Pedestal

Enlarge Image

Images

Spot Welder 16KVA Tecna Digital 4640 Pedestal

£2,310.00 +VAT £2,772.00 Incl. VAT

Availability: In stock

Spot Welder Tecna Digital Pedestal 4640
Code: Tecna-4640
In stock
(0)
Description

Details

The Tecna 4640 is a 16Kva Pedal Operated Digital Spot Welder, Ideal for production spot welding, True 3+3mm capacity, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty

  • Adjustable arms length, foot pedal length
  • Easy to set up via digital control panel
  • Electrode stroke, electrode pressure
  • Requires 32Amp Delayed Trip/Fuse
  • Epoxy coated transformer
  • Water Cooled transformer, arms, electrodes & holder
  • Digital adjustment of weld cycles and welding power
  • Digital selection of: no weld, standard timer, timer with pulse
  • Carriage free to UK mainland
  • 1 Year warranty
Technical Specifications

Details

  • Input Voltage 415V 50 Hz
  • Power @ 50% 16 kVA
  • Requires 32Amp Delayed Trip/Fuse
  • Maximum Short Circuit Power 12.5KA
  • Arms Gap 220 mm
  • Min Throat Depth 230 mm
  • Max Throat Depth 550 mm
  • Force On Electrodes @ Max Length 95 dAN
  • Electrode Stroke @ Max 15 - 85 mm
  • Digital Welding Timer
  • Water Consumption l/h 220
  • Min Water Pressure Bar 2.5
  • Arms Diameter 40 mm
  • Electrode Holders Diameter 22 mm
  • Weight Kg 135
  • Dimensions (mm) 320 x 800 x 1230
  • Carriage free to UK mainland
  • 1 Year warranty
