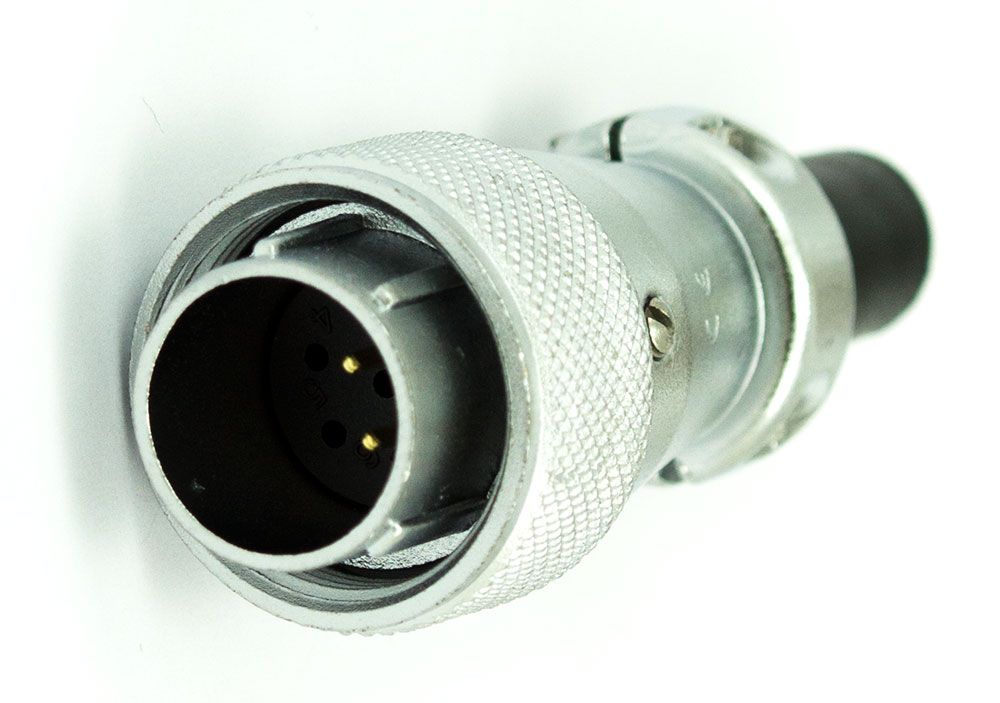

R-Tech 7-Pin Plug (2014-)
CODE
RTW-A-7P-2014
In stock
7 Pin Plug for R-Tech Tig Torches and Foot pedals (2014-)
- 7 Pin Plug for R-Tech Machines(2014-)
- For fitment to Tig Torch or Remote Foot pedal
- For all R-Tech machines with 7 Pin plug from 2014 onwards with "Q" prefix to serial number
- Pin connections as follows
- Torch switch - 1 & 2 switch wires
- Foot pedal - 1 & 2 switch wires, 3 Pot low, 4 pot wiper (middle), 5 Pot High, 6&7 short out (This tells machine foot pedal is now fitted)
