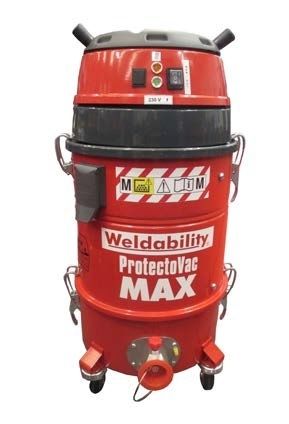

DetailsPROTECTOVAC FUME EXTRACTOR 110V
ProtectoVac is a portable, twin-motor, high-vacuum fume-extraction system specifically designed to extract and filter metal particulate fumes created in welding processes. A high efficiency 3 stage filtration system, including a spark arrestor and is quite operation <70dBA.
The ProtectoVac is supplied with a 2.5m hose, magnetic foot welding nozzle and spare set of motor brushes, The ProtectoVac features an auto on/off function which allows the unit to be engaged automatically with the welding arc. The ProtectoVac can also be used for on-MIG-torch extraction, with the appropriate fitting kit available separately. The ProtectoVac is highly portable weighing only 15kg and mounted on swivel castors. Operates from a 110v input supply.
The ProtectoVac should NOT be used for filtering fumes containing oil, solvent, explosive dusts/gases or hybrid mixtures of wastes, etc.
- Technical Specifications
Pos 1 : 160 m3/h
Pos 2 : 230 m3/h
Noise Level (nozzle installed)
Pos 1 : 63 dB(A)
Pos 2 : 70 dB(A)
730mm x 360mm x 360mm
